furniture powder coating machine

furniture powder coating machine

  • Price
  • /piece
  • Model
  • CL-131S02
  • Quantity
  • piece(Unlimited)
Detail Information
Item specifics
Product Type paint
Machine Type coating machine
Brand Name colo
Type Coating Spray Gun
Coating powder coating
Dimension(L*W*H) 118CM*80CM*80CM
Material / Metal Steel,all metallic surface
Voltage 220/110v
Power(W) 50w
Certification CE/ISO
Detail Information

Technical data:
Electrical data
Mains input voltage100-240 VAC
Operating frequency50-60 Hz
Input power50W
Nominal output voltage (to the gun)max. 12 V
Nominal output current (to the gun)max. 1 A
IP54
Ambient temperature range0°C - +40°C (+32°F - +104°F)
Max. operating temperature85°C (+185°F)
ApprovalsCE
Pneumatical data
Compressed air connection1/4" male quick release
Max. input pressure10 bar / 145 psi
Min. input pressure (while unit in operation)6 bar / 87 psi
Max. water vapor content of the compressedair 1.3 g/m³
Max. oil vapor content of the compressed air0.1 mg/m³
Packing Dimensions
Length120CM
Width79CM
Height73CM
Weightapprox. 55kgs

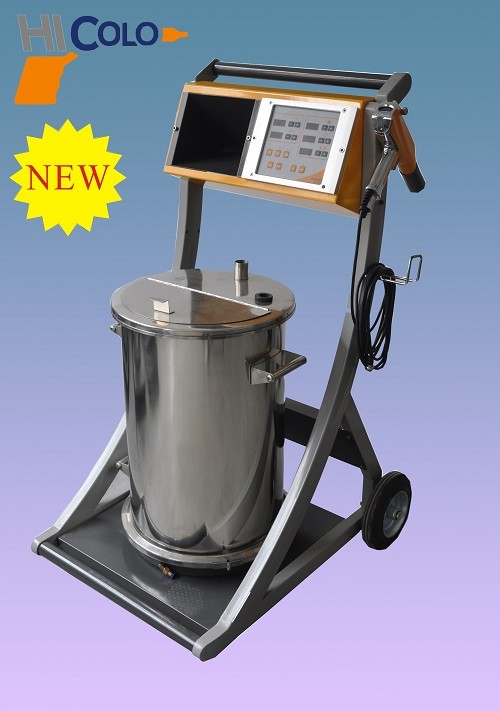

Electrostaticpowder coating kits,The CL-131S electrostatic powder manual coating equipment with the
COLO-06 manual powder gun is ideally suited for manual coating of objects in larger series.
Theprocess of the coating is like this :the powder is fluidized in thepowder hopper. The injectors transport the powder through the hoses tothe guns . The guns spray a powder/air mixture onto the workpieces.
Typical characteristics
- Processing the powder from the fluidized powder hopper
- Quick and simple color change
- Supplied ready for use
- Available with one or two guns (extensible)


furniture powder coating machine
  • furniture powder coating machine
  • furniture powder coating machine
  • furniture powder coating machine
  • furniture powder coating machine
